KSh7,500.00

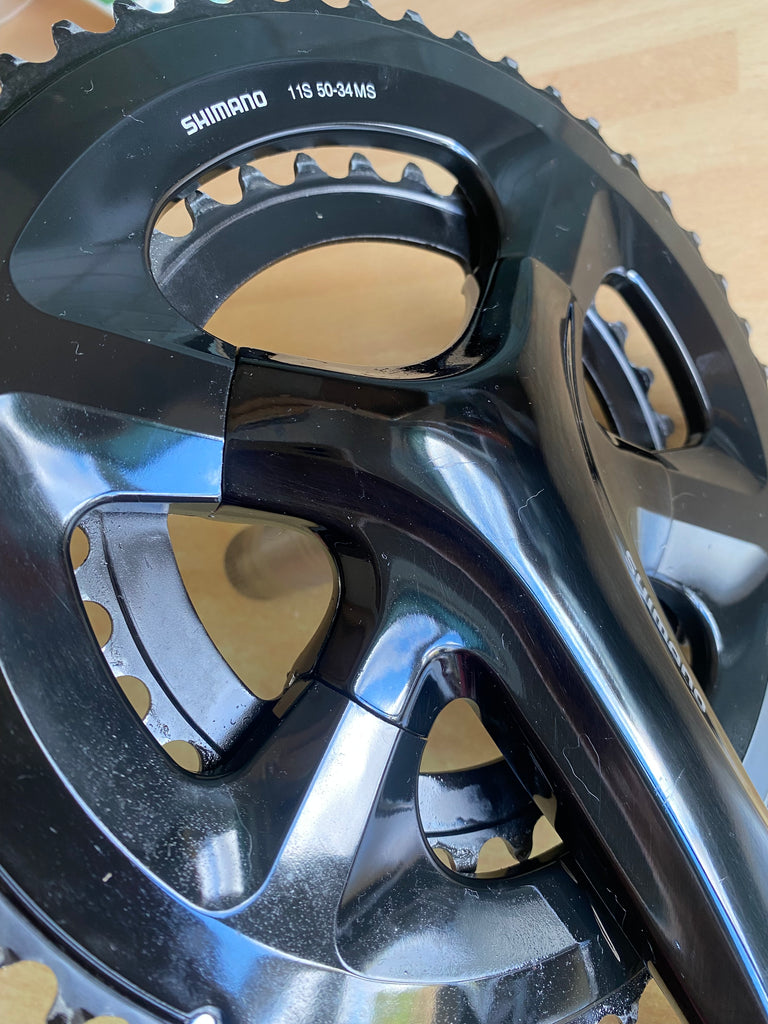

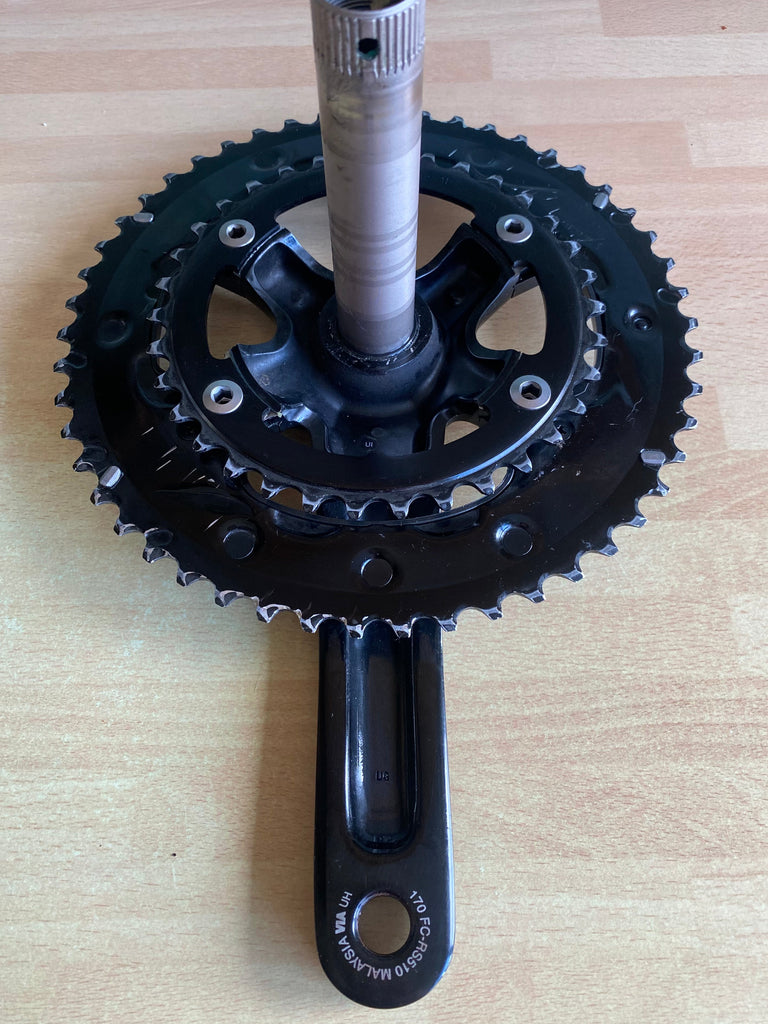

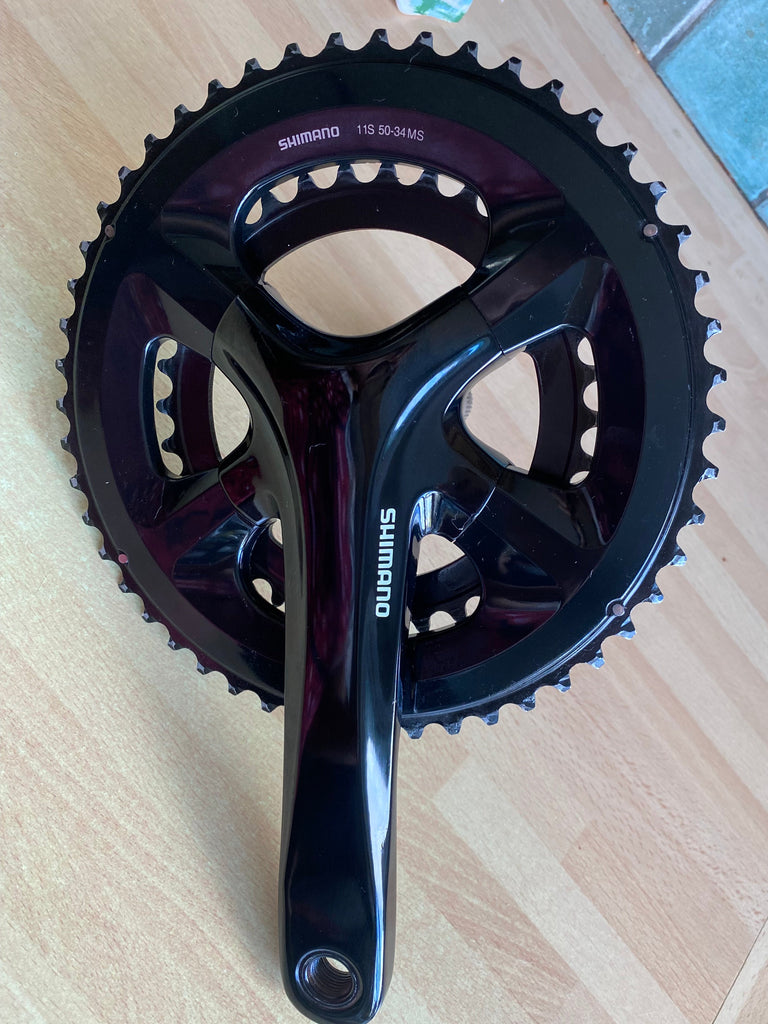

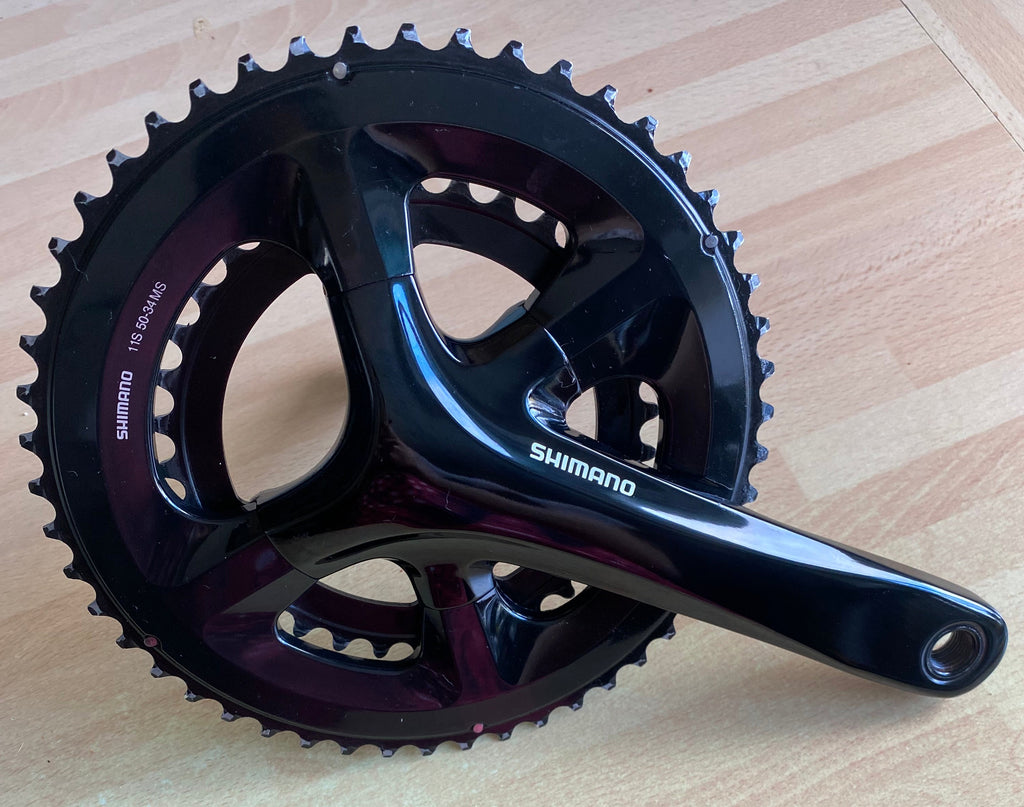

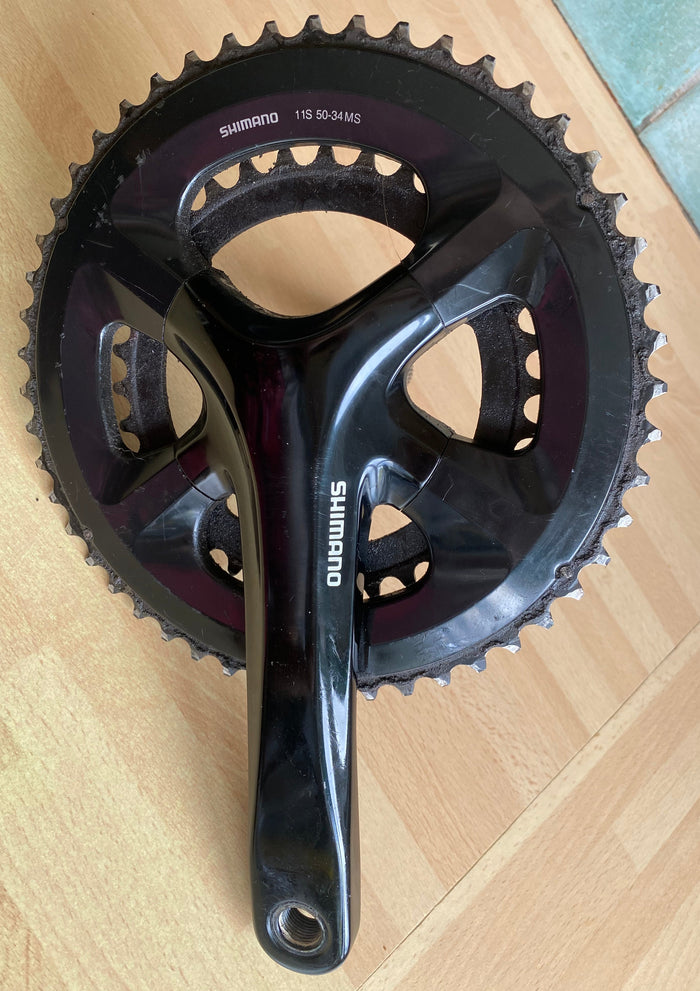

Shimano FC-RS510 11 speed road crankset - 50/34T
The Shimano FC-RS510 is an 11-speed, non-series road bike double crankset. It is often paired with Shimano 105 or Tiagra groupsets as an affordable, high-quality component choice.
Key Specifications
- Gearing: 2x11-speed drivetrain, with a 50-34T compact configuration printed on the outer ring.
- Axle/Spindle: Uses a 24mm integrated steel axle spindle compatible with Hollowtech II bottom bracket standards.
- Construction: 4-arm asymmetric design featuring forged and anodized aluminum crank arms.
- Materials: Large chainring constructed of an aluminum/resin combination; inner small chainring is anodized aluminum.
- Bolt Circle Diameter (BCD): 110mm asymmetric.
- Chainline: 43.5mm.
- Q-Factor: 150mm.
- Average Weight: Approximately 908 grams for the 50-34T version.
- Frame & Chain Compatibility: Optimized for modern disc brake or rim brake road frames with 135mm or 142mm rear axle spacing. It functions best with Shimano HG-EV 11-speed or HG-X 11-speed chains
MINT
